Nanguang’s On-site Vibration Measurement and Analysis System
Author:Nanguang Power Source from:Hu Zhixing 1503

The Vibration Measurement & Analysis System and the Dynamic Balance Measuring Instruments, which were bought by Nanguang Power (Nanjing) in 2006, are effective in helping us solve a variety of Gas Turbine‘s vibration problems arising before or after maintenance for gas turbine power plant and the relevant gas turbine users.

We have implemented vibration measurement & analysis, as well as the high-speed balancing on- site using the equipment for # 1-MS6000 gas turbine located in Zhuhai Hongwan Power Plant. After correction by on-site balancing, the gas turbine’s vibration has been improved evidently, the cutoff passing vibration during Acc/Dec process has dropped to near 8 mm/s from 13 mm/s or so.

Recently, we have measured and analyzed the front bearing’s heavy vibration for PB9171E # 5 Gas Turbine Generator owned by Shenzhen Baochang Power Plant, excluding a number of suspicious factors that may produce potential vibration.

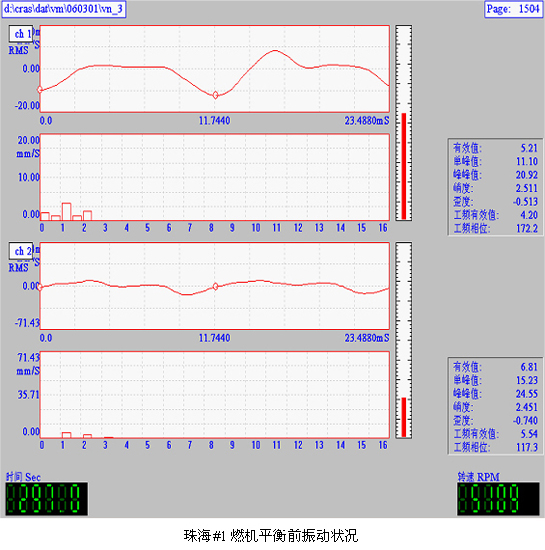

 the vibration status of Zhuhai #1 gas turbine before being balanced

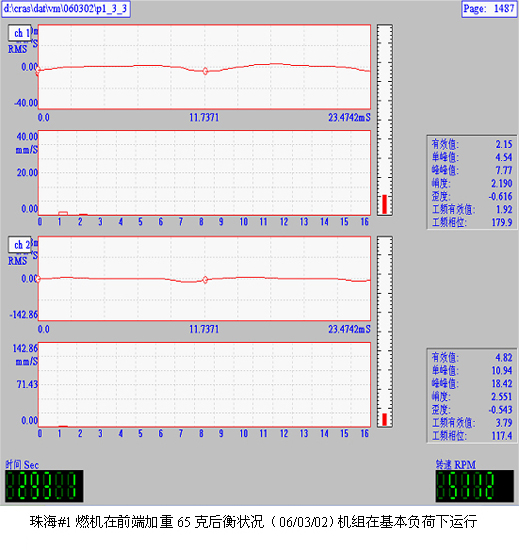

the balance status for Zhuhai 1# gas turbine after adding 65 KG to front end (06/03/02), the gas turbine is in operation under the basic load.







On-site Vibration Measurement and Analysis System

Data Acquisition Toolbox (AZ-208R) and Signal Processor (AZ-804)
